ALL IN ONE Heat Exchanger: Advanced IEC Technology

The ALL IN ONE Heat Exchanger (HX) is the next-generation Plate type, Crossflow, Air-to-Air heat exchanger engineered for superior Indirect Evaporative Cooling (IEC) performance. The IEC operations refer to the two separate airflow streams within the exchanger that enable cooling without adding moisture to the supply air. This technology is designed to deliver high cooling efficiency, significant energy savings, and long-term operational reliability for both industrial and commercial applications.

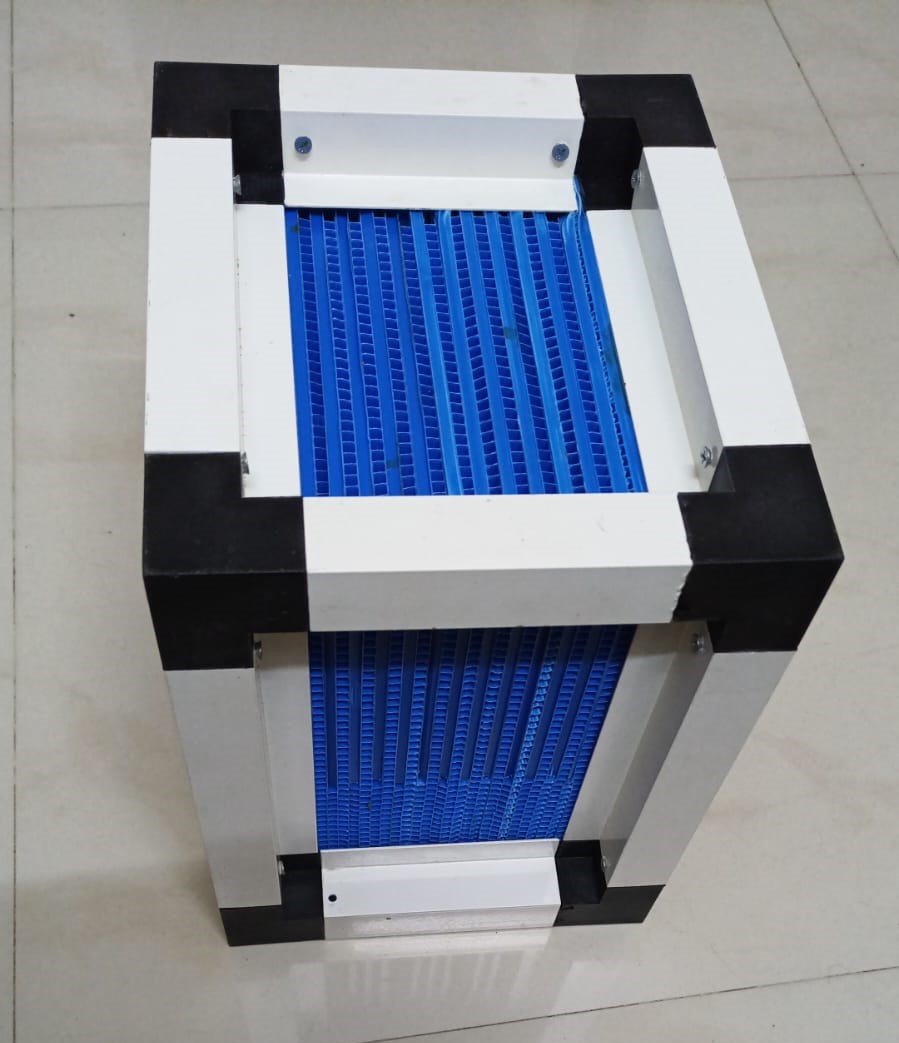

Plate Type Crossflow Air to Air Heat Exchanger by All In One Technology

How the Indirect Evaporative Cooling Works

  • Primary (Dry) Air Stream: Warm supply air passes through the dry channels of the HX, separated by thin engineer polymer plates.
  • Secondary (Moist) Air Stream: Exhaust air flows through the wet channels where a thin film of water is present.
  • Heat Exchange Process:
    • Heat from the dry channel passes through the plate into the wet channel.
    • The heat evaporates the thin water film on the wet side.
    • The primary air is cooled sensibly (temperature reduction without moisture addition).
    • The secondary air absorbs the moisture and is exhausted.
  • This crossflow arrangement ensures zero moisture carryover to the supply air and enables consistent, reliable cooling performance.

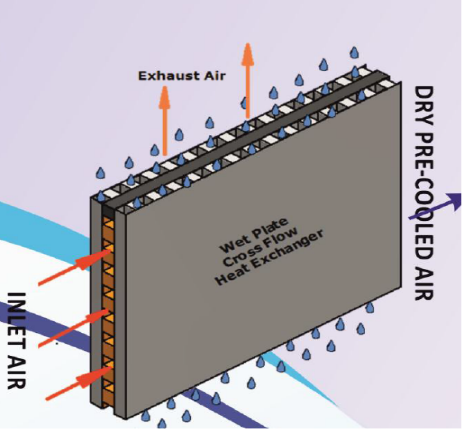

Diagram showing the Heat Exchange Process in an IEC system

Performance & Energy Savings

  • ALL IN ONE HX-based IDEC systems can replace conventional air-conditioning in some comfort cooling as well as ventilation applications, using up to 30% less energy.
  • Indirect-Direct Evaporative Cooling (IDEC) systems can completely eliminate conventional HVAC systems in certain climates.
  • Pre-cooling with ALL IN ONE HXs reduces load on DX or chilled water cooling coils in Hybrid AHUs and Treated Fresh Air (TFA) units.
  • Energy Savings Examples:
    • IEC assisted TFA: Up to 30% less energy compared to conventional TFAs.
    • IEC assisted Hybrid AHU: Up to 30% less energy while delivering three times more fresh air to conditioned spaces.

Key Features

  • High-Efficiency Construction - Lightweight, corrosion-resistant engineer polymer optimized for IEC.
  • Crossflow Plate-Type Design - Low pressure drop and effective thermal separation.
  • Low Leakage - High reliability in maintaining separate dry and moist streams.
  • Low Fouling - Smooth polymeric surfaces reduce scaling and dirt accumulation.
  • Modular & Scalable - Configurable for different capacity requirements.
  • Environmentally Friendly - No refrigerants, reduced carbon footprint.

Applications

  • Comfort cooling in Industrial and commercial buildings
  • Process cooling applications
  • Cooling of large working spaces like warehouses
  • Ventilation for atriums, food courts & industrial kitchens
  • Comfort cooling for malls, auditoriums and dining areas
  • Hybrid HVAC systems
  • Treated Fresh Air (TFA) systems
  • Compressor-less cooling solutions

Why Choose Us?

The ALL IN ONE Heat Exchanger provides consistent performance, low operating costs, and sustainability benefits without compromising on comfort or air quality. By reducing dependence on energy-intensive air-conditioning systems, we support green building goals and climate-conscious cooling strategies.

Key Types of Air-to-Air Heat Exchangers

Plate Heat Exchangers

Use parallel plates (often aluminum) to maximize surface area. Ideal for high-efficiency, space-constrained, or commercial applications.

Rotary Heat Exchangers (Heat Wheels)

A rotating matrix absorbs heat from one stream and releases it into another, offering high efficiency in a compact design.

Tubular / Heat Pipe Exchangers

Use tubes or passive phase-change fluid to transfer heat. Suitable for high-temperature or dusty environments.

Run-Around Systems

Circulating fluid transfers heat between separate air streams. Useful for long-distance heat transfer.

Key Features & Applications

Industrial Applications

Essential for heat recovery from process ovens, kilns, VOC abatement systems, and drying processes.

HVAC Efficiency

Used to preheat fresh air in winter and precool it in summer, often using cross-flow or counter-flow designs.

Enclosure Cooling

Protects electrical components from overheating in industrial environments.

Materials

Typically constructed from aluminum, stainless steel, or copper for efficient heat transfer.

Benefits

Energy Savings

Reduces HVAC load by reusing existing heat.

Environmental Sustainability

Lowers carbon footprint by reducing energy consumption.

Improved Air Quality

Provides consistent ventilation with tempered fresh air.
